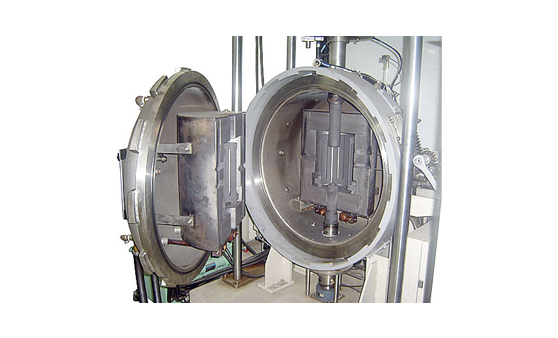

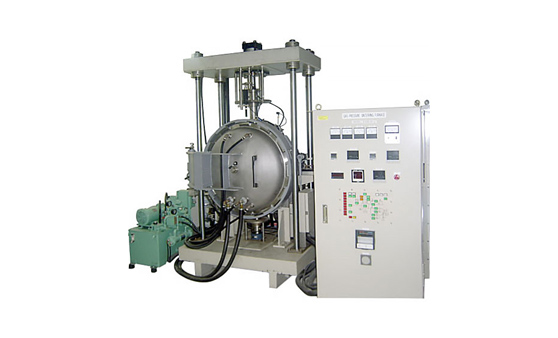

GAS PRESSURE SINTERING &HOT PRESS
※unit(mm)
| HP - 15G | HP - 20G | HP - 25G | |
| Heat zone | 150Φ X 200H | 200Φ X 200H | 250Φ X 250H |
| Sample size | 40Φ | 80Φ | 100Φ |
| Temperature of use | 2300℃ | ||
| Pressure | X 10(-5) torr - 9.9 kgf/cm2 | ||
| Atmosphere | Vacuum, N2, Ar, He | ||
| Heating element | Graphite | ||
| Press pressure | Maximum 20 ton | ||
| Power(KVA) | 30 | 50 | 80 |
| Cooling water (ℓ/min.) | 30 | 50 | 60 |

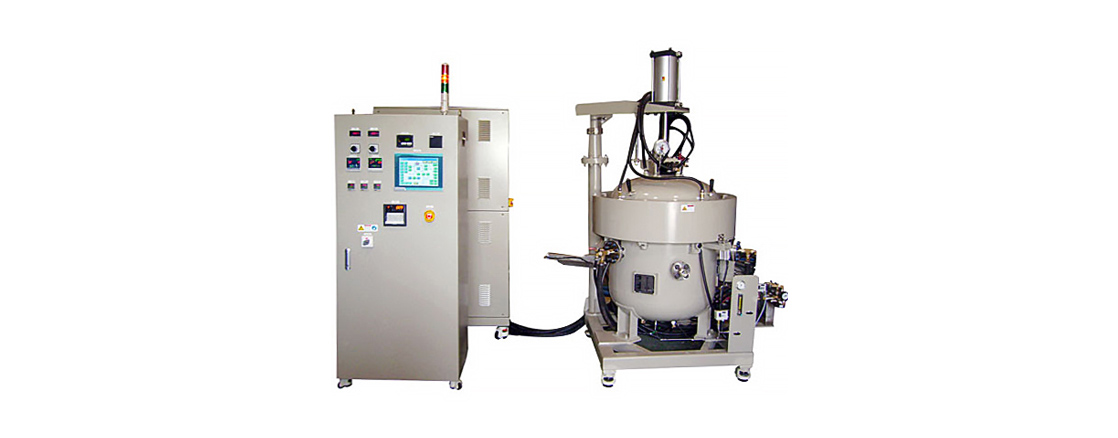

TNGPS Pressurization Furnace (Top loading method)
※unit(mm)
| Heat zone | 230 Dia. x 150H |
|---|---|
| Product dimensions | 160 Dia. x 100H |
| Max temp | 2200℃ |
| Heater | Graphite Round Type Heater |
| Insulating material | Graphite molded insulating material |
| Atmosphere | 20 atm N2 |
| Utility | Power 85KVA, cooling water, process gas |
