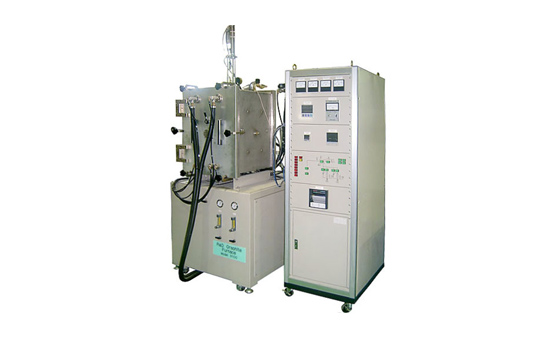

TNGRD - 200 Graphite Furnace
※unit(mm)

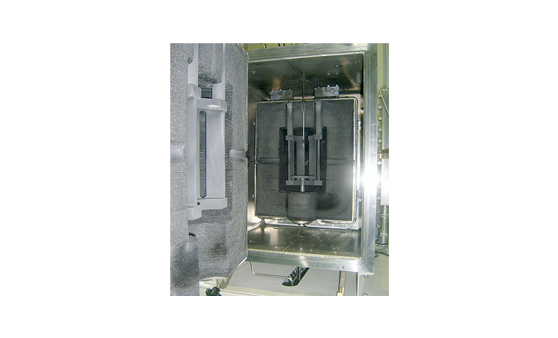

| Heat zone | 200 Dia. x 130H |
|---|---|
| Uniformity | 180 Dia. x 100H ※Can be changed according to consumer needs |
| Max temp | Use at 2800℃ maximum 3000℃ |
| Heater | Graphite Round Type Heater |
| Insulating material | Graphite molded insulating material |
| Atmosphere | A4, N2 (N2 can be used up to 2400℃) |
| Utility | Power 66KVA, cooling water, process gas |
