TNOST-7500 Pusher-style Round Type Continuous Furnace
※unit(mm)
| Heat zone | 260 Dia. x 7500L ※Can be changed according to consumer needs |
|---|---|
| Max temp | 2900℃ ※Can be changed from 1000 ~ 2900℃ according to consumer needs |
| Furnace body dimensions | 9900L x 1100W x 1100H |
| Furnace installation area | 23000L x 7000W x 3000H |
| Heater | Graphite Round Type Heater |
| Insulating material | Graphite molded insulating material |
| Rail | Gaphite |
| Used Gas | N2(Up to 2400℃), Ar |
| Utlity | Power 500KVA, cooling water, process gas, air |
| Purpose |
|
| Zone control method | Optical Pyrometer Control |

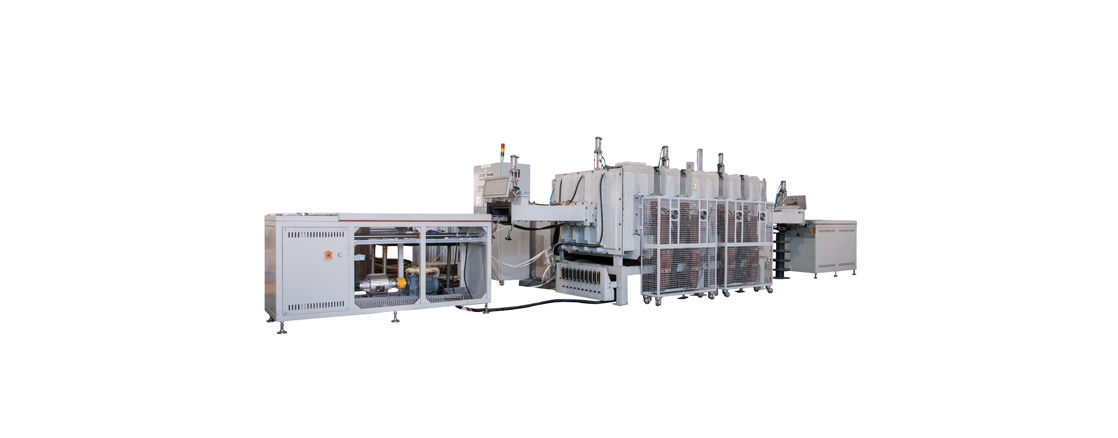

TNRST-2000 Pusher-style Square Continuous Furnace
※unit(mm)
| Heat zone | 2000L ∼ 8000L x 1000W x 70H ※Can be changed according to consumer needs |
|---|---|
| Max temp | 2400℃ ※Can be changed up to 2800℃ according to consumer needs |
| Heater | Graphite Rod Type Heater |
| Insulating material | Graphite molded insulating material |
| Rail | Graphite |
| Conveyor | Pursher or Roll to Roll method |
| Used Gas | N2, Ar |
| Utlity | Power 200KVA, cooling water, process gas, air |
| Purpose |
|
| Zone control method | Optical Pyrometer Control |

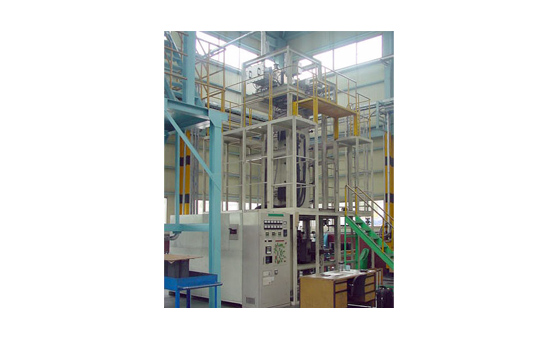

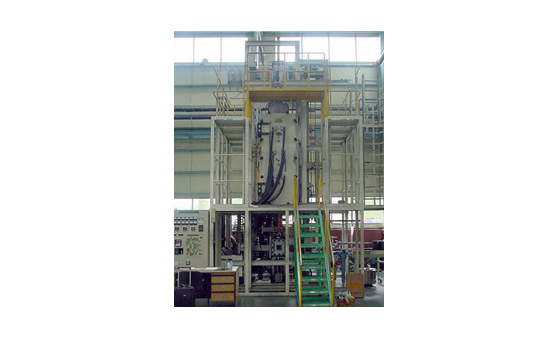

TNRV Vertical Type Continueous Furnace
※unit(mm)
| Temperature of use | Up to 2800℃ |
|---|---|
| Heat zone | 227Φ x 1750L |
| Heating element | Graphite |
| Muffle | Graphite |
| Insulating material | Graphite |
| Temperature control | 3 Zone optical Pyrometer |
| Atmosphere | Ar, N2 |
| Power | 300 KVA |
