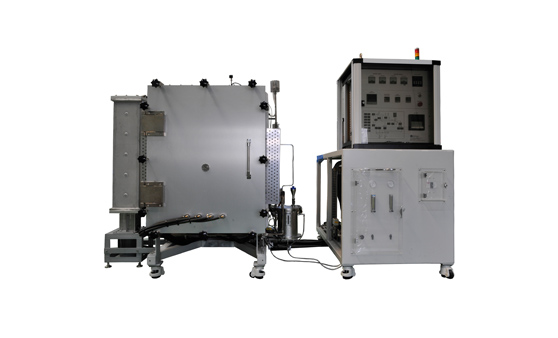

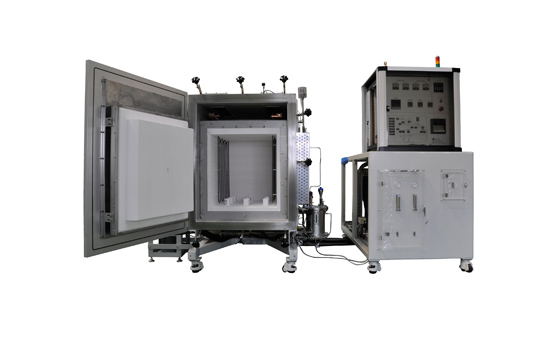

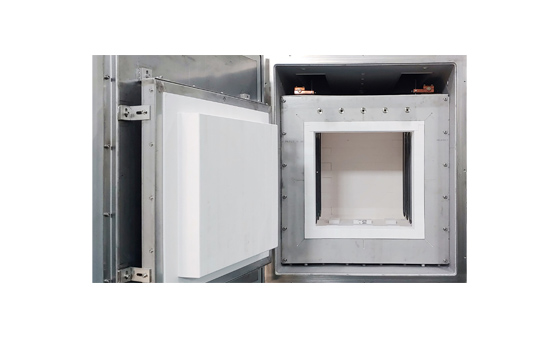

TNTC-A Tungsten Heater(Square Chamber)
※unit(mm)
Heat zone 650 x 650 x 800H ※Can be changed according to consumer needs
Max temp Use at 1800℃
Vacuum Rotary pump vacuum for substitution
Heater Tungsten Rod Heater
Insulating material Ceramic insulating material Bubbling system for using wet gas Forced cooling method for fast cooling
Atmosphere N2 + H2, Ar
Utility Power 100KVA, cooling water, process gas, air
Characteristics Power consumption is good due to its good insulation.
Optional items Oxygen partial pressure control device

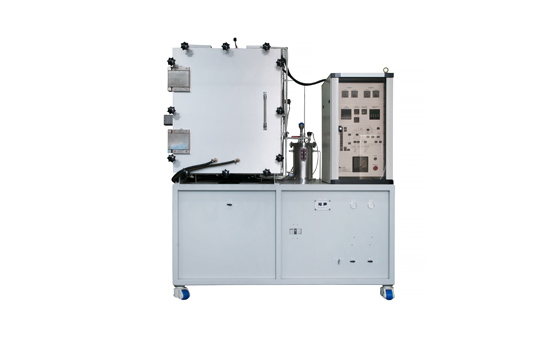

TNTC-B Tungsten Heater(Square Chamber)
※unit(mm)
Heat zone 550 x 550 x 600H ※Can be changed according to consumer needs
Max temp Use at 1800℃
Vacuum Rotary pump vacuum for substitution
Heater Tungsten Rod Heater
Insulating material Ceramic insulating material Bubbling system for using wet gas Forced cooling method for fast cooling
Atmosphere N2 + H2, Ar
Utility Power 70KVA, cooling water, process gas, air
Characteristics Power consumption is good due to its good insulation. The price is cheaper than that of A type.
Optional items Oxygen partial pressure control device

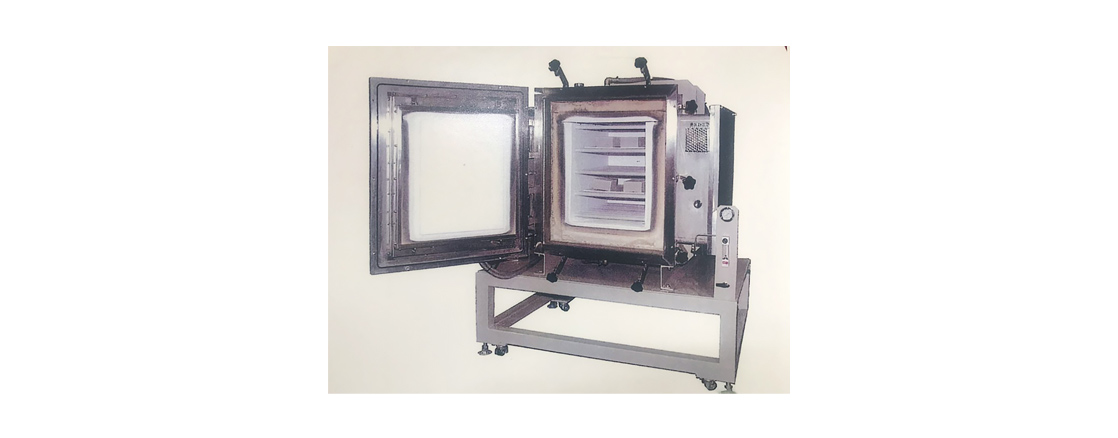

TNMA-N1 (Patent) Multisgtage Multi-Atmosphere Furnace
※unit(mm)
Heat zone Consumer demand
Heater Al2O3 Sheath Heater
Insulating material Al2O3 molded insulating material
Atmosphere Various gases such as air, N2, Ar, NH3, O2, etc.
Plate for loading samples Al2O3 Plate
Characteristics
  • 1) Utilizing various atmospheres such as Ar, N2, H2, NH3, O2
  • 2) Excellent temperature distribution due to multi-stage heater structure
  • 3) The inside of the furnace as Al203 structure which prevents contamination
  • 4) Heater zone can be manufactured with homogeneous material
    Titanium insulating material – Titanium heater, Graphite Heater – Graphite insulating material,
    SUS insulating material – SUS Heater, Cu insulating material – Cu Heater
